Point

Top  Previous  Next



clip0694



FX Draw has a tool that allows you to mark and label points in one step.



There are two ways of using the labelled point tool.



Mark a Point Without Using a Label.



Clicking the left mouse button anywhere on the drawing canvas will mark a point without adding a label.



Mark a Point and Attach a Label



Click and hold the left mouse button on the point you wish to mark and then move the mouse to the location you wish the label to appear.



clip0609

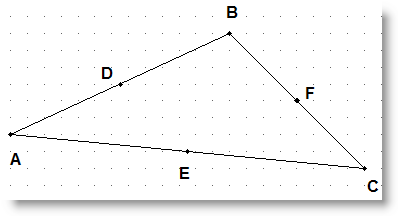

If you add more than one labelled point, the labels will automatically increment.



clip0610



Editing the Properties of a Labelled Point

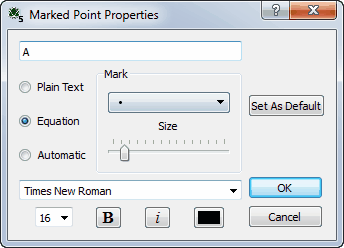

Right clicking on a labelled point allows you to edit a point's properties.



clip0933



Here you can change the style and size of the point mark, as well as changing label and formatting.  If you change any label, the automatic increment will start from your new text.



For example, if we change the label from E to P', the next automatically generated labels will automatically be Q', R' and so on.



clip0612



Labelled points are GAD aware and will automatically move with any underlying geometry.
