Volumes of Solids of Revolution

Top  Previous  Next

Video - Volume of Solids of Revolution



You can create volumes of solids of revolution by:

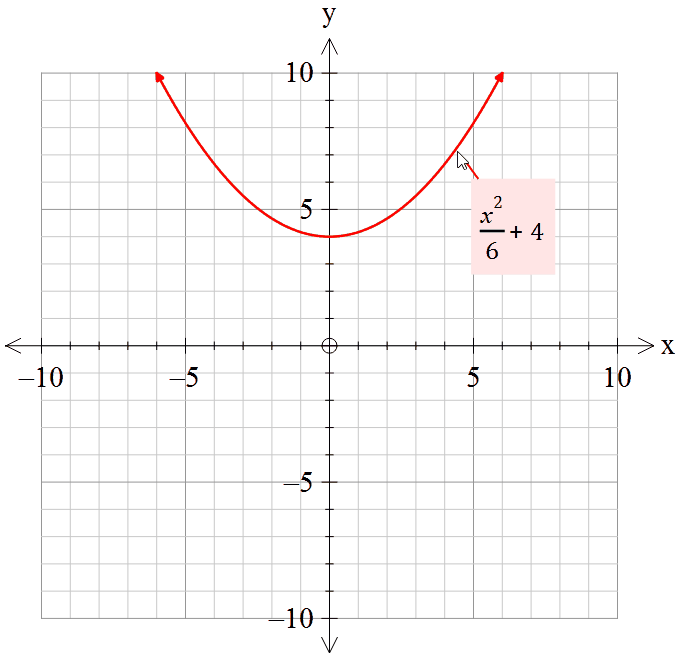

1.        Drawing a 2D Cartesian function.



fxg6clip0052

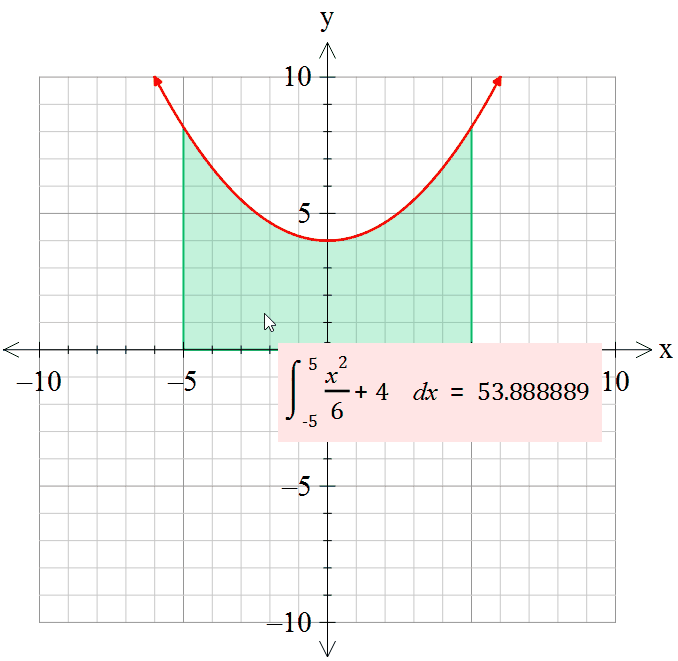

2.        Select the Integral tool and sweep out an integral



fxg6clip0053

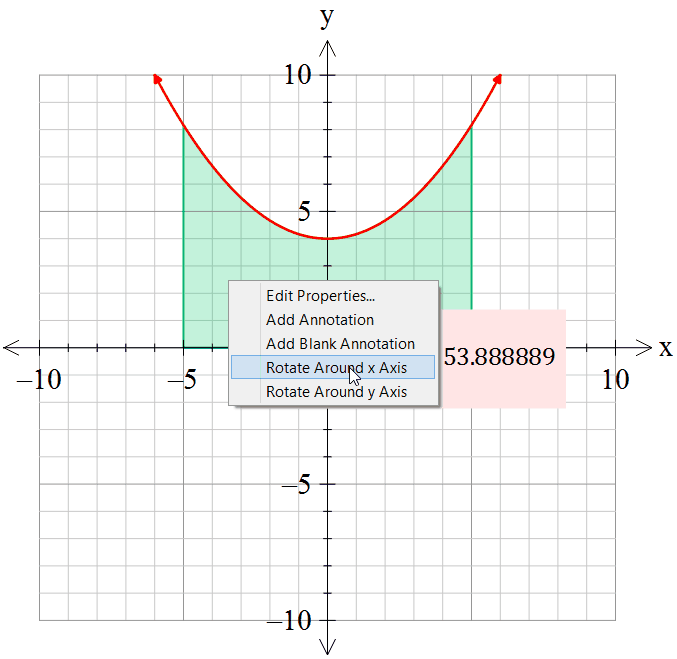

3.        Right click on the integral and select a rotation.



fxg6clip0054



fxg6clip0055

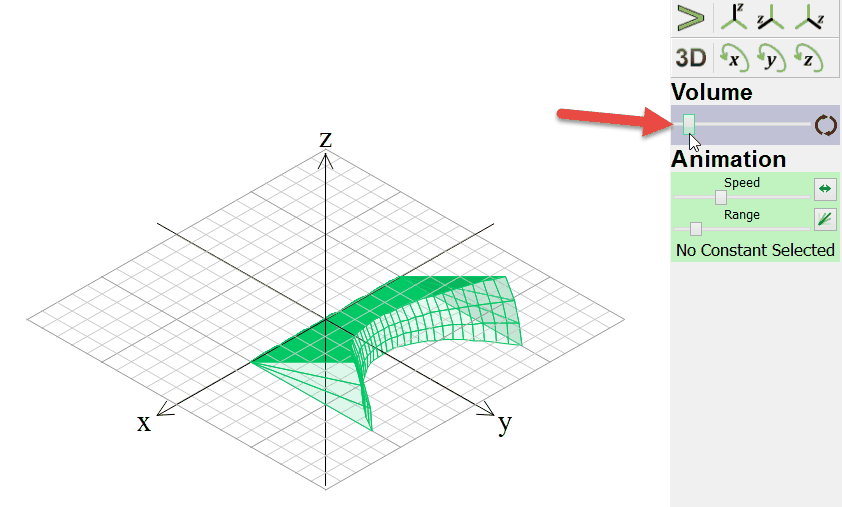

4.        You can use the Volume slider to demonstrate or animate the rotation.



fxg6clip0056
