Adding Regularly Spaced Points To Lines

Top  Previous  Next

You can divide any line by adding dividing points to the line.

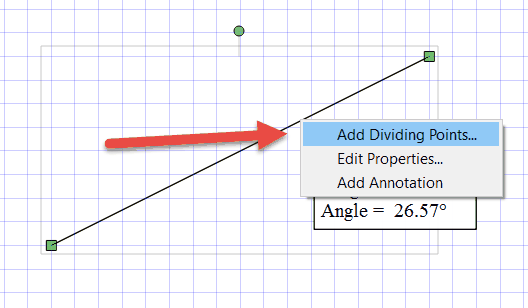

First select the line, then right click on it and choose Add Dividing Points...



clip1236

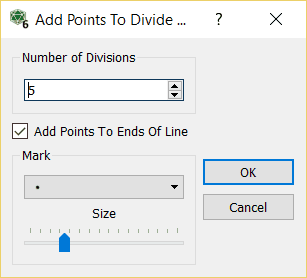

Now enter how many parts you wish to divide the line into. You can also choose to add points to the ends of the line.



clip1238

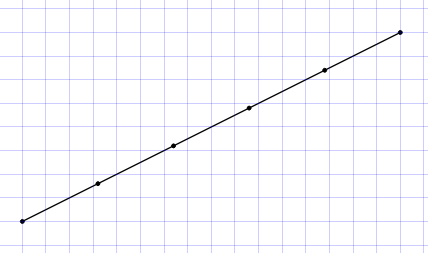

clip1239

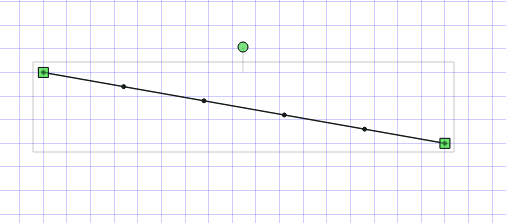

The points are attached to the line and will move with it.



clip1240

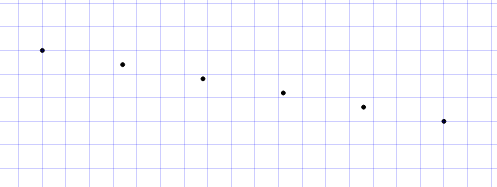

You can also delete the line and the equally spaced points will remain on the canvas.



clip1242
