Integrals can be entered using the int command.



Example:

fxe0157                                is entered as int x dx



For definite integrals, the upper and lower bounds are placed in brackets and separated by a comma (see Decimals).



fxe0158                is entered as int(-1,1)x2+1 dx

fxe0159                is entered as int(pi/4,pi/2)e^(sinx) cos x dx

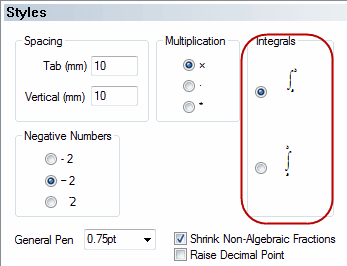

Integrals can be drawn in two different ways - with the bounds to the right of the integral sign or with the bounds above and below.  This option is set in the Styles section of the preferences.



clip0778
