We have implemented an extended version of LaTex style table/grid definitions
eg.
grid(opt(|C|RRRL|0-=) ...content of grid...)
The option string, |C|RRRL|0-=, defines the horizontal alignment of each column in the grid as well as allowing you to control vertical and horizontal lines on a grid.
| Draw a vertical line
C Centre align the column
R Right align the column
L Left align the column
N Number align the column
0 Do NOT draw a horizontal line
- or 1 Draw a horizontal line
= or 2 Draw a double horizontal line.

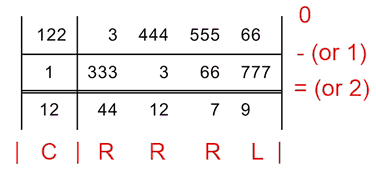

This means that you can produce this table using the defined options.
grid(opt(|C|RRRL|0-=) 122&3&444&555&66\\1&333&3&66&777\\12&44&12&7&9)
Note:
| • | The bottom lines are not defined by our option string so they are left blank. |
| • | Grid line options are only honored in grids. |
