Zooming

Top  Previous  Next

The graph tool's Point of Interest system greatly reduces the number of times you will wish to zoom into a graph but the graph tool supports zooming in a number of ways.



Zooming With The Keyboard

You can zoom in and out using the keyboard.



Page Up        -        Zooms the axes out

Page Down        -        Zooms the axes in

Home                -        Centres the axes on the origin.



Starting Axes



FXGclip0128







Page Up        -        Zooms OUT by 33%



FXGclip0130







Page Down        -        Zooms IN by 33%

FXGclip0131





Zooming With The Mouse

Zoom Mode

Before using your mouse to zoom, you must first enter Zoom  Mode.  Push the fxgclip0224 button on the graph tool's toolbar.



Once in Zoom mode you can use the mouse to Zoom into and out from functions.





Click Zooming

If you click the left mouse button somewhere on the plane, the graph tool will zoom in to the point you click on.  This allows you to quickly and easily zoom in on points of interest.



If you right click, the graph tool will zoom out.





Rectangle Zooming

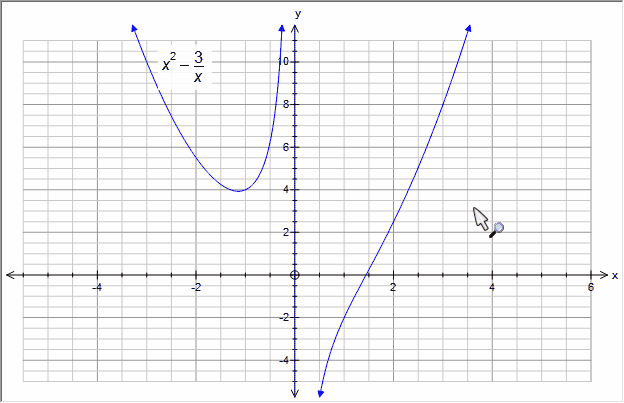

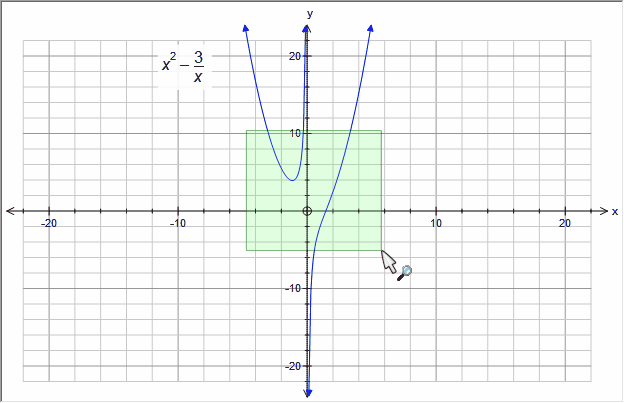

If you sweep out a rectangle while holding down the left mouse button, the graph tool will zoom into the rectangle you have defined.



fxgclip0226



fxgclip0227







Undo Zoom

Undo remembers zoom events so you can undo any zoom by choosing Undo from the Edit menu or by typing Ctrl+Z
