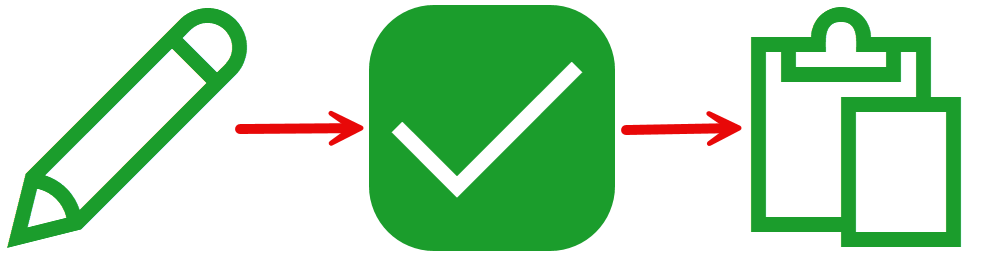

Draw - Green Check - Paste.

This is usually the quickest way of inserting an equation into your work. Enter your equation, press the green check mark button, and then paste your equation into your work. Our equation editors can provide your equation in MULTIPLE formats and selecting which format to use is the most crucial step. See below for more information on the formats available.

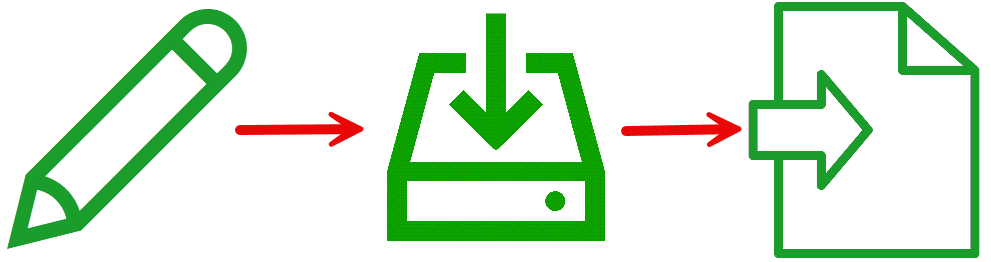

Draw - Save As - Insert.

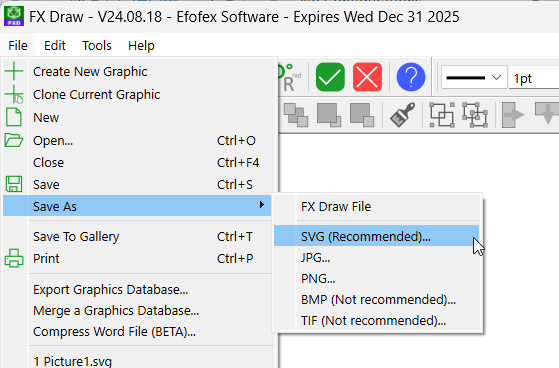

This approach allows you to save a copy of your image separate to your work. Once you have drawn your image, choose File, Save As from the toolbar and select your desired output.

We recommend saving as an SVG graphic if possible. If you must use a bitmap output, we recommend PNG files. Equations saved as bitmaps are not editable.

Which Format Should You Use?

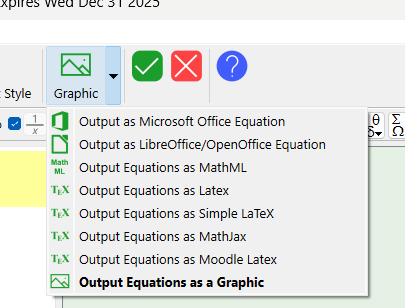

Our equation editors can output their equations in lots of formats. Typically, most container applications can support some version of LaTex but support is patchy at best. You will need to investigate which option suits your needs.

Microsoft Office Equations can only be pasted into Microsoft Office products and is rarely necessary

LibreOffice output is only for LibreOffice and OpenOffice and cannot be edited later.

MathML is being slowly replaced by LaTex coding in general usage. MathML output CAN be edited later.

The various LaTex output options only differ by what surrounds the equation. Full LaTex begins equations with begin{equation}. Moodle LaTex begins equations with $$. Simple LaTex does not use a wrapper. All LaTex-based equations can be edited later.

MathJax produces a version of LaTex that is optimised for use in MathJax applications.

Graphic output produces a bitmap (not editable) and, optionally, an SVG version (editable) of your equation.

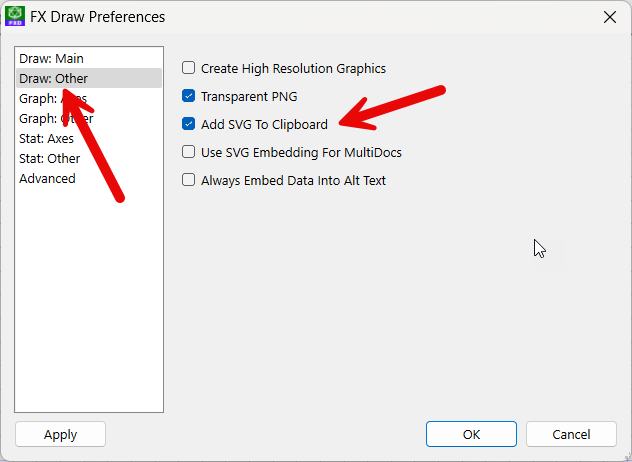

If you want to use an SVG, graphic version of your equation, you will need to ensure that your product is set up to add an SVG version to the clipboard. To do this, go to your Tools menu and select Preferences (select Preferences from the main menu on a Mac). Ensure that Add SVG to the Clipboard is checked.
